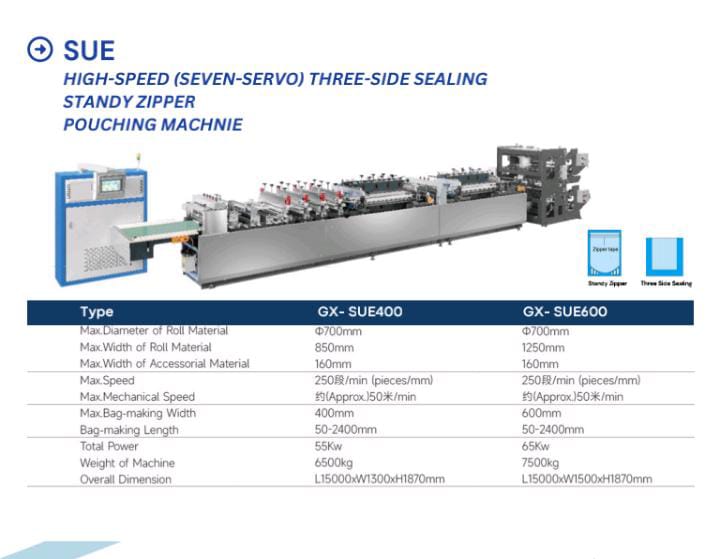

High speed seven servo three side sealing standy zipper pouching machine

High speed seven servo three side sealing standy zipper pouching machine Specification

Max Lamination Temp
180C

Max Film Width
1200mm

Membrance Core Size
76mm (3 inch)

Lamination Speed
100-160m/min

Product Type
Three Side Sealing Standy Zipper Pouching Machine

Material
Mild Steel, Stainless Steel

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
Seven Servo Motor System with PLC Touch Screen

Drive Type
Electric

Heating System
PID Controlled Heating

Power Source
Electricity

Voltage
380V, 50/60Hz

Weight (kg)
3200 Kg

Dimension (L*W*H)
6200mm x 1700mm x 1850mm

Capacity
120-180 pouches/min

Feature
High Speed, Precise Sealing, Energy Efficient, Low Noise Operation

Color
White and Blue

Type of Rollers
Chromed Steel Rollers

Speed
Up to 180 pouches/min

Input Paper Size
Max 1200mm Width

Suitable Paper
Laminated Paper, PET, BOPP, CPP, PE

Air Consumption
0.6MPa, 350NL/min

Application
Food, Pharmaceutical, Chemical, Industrial Packaging

Max Pouch Length
400mm

Operation Mode
Touch Screen HMI

Min Pouch Width
80mm

Pouch Type
Stand-up, Zipper, Three Side Sealed

Cutting Type
Servo Driven Rotary Knife

Sealing Method
Heat Sealing with Precise Temperature Control

Max Pouch Width
600mm

Pouch Thickness Range
0.06-0.18mm

About High speed seven servo three side sealing standy zipper pouching machine

Experience unrivaled efficiency and dazzling performance with the High Speed Seven Servo Three Side Sealing Standy Zipper Pouching Machine-available now at the best price with an exclusive offer. Take advantage of this first-string technology, featuring full automation, touch screen HMI, and seven servo motor system for precise operation. Engineered for food, pharmaceuticals, chemicals, and industrial packaging, it handles stand-up, zipper, and three side sealed pouches with capacity up to 180 pouches/min. Boasting PID controlled heating, low noise, and energy efficiency-all encased in robust mild and stainless steel construction. Distributed across India through trusted dealers, exporters, and suppliers.

Dazzling Features & Versatile Applications

Achieve precise and high-speed pouch packaging with this state-of-the-art machine, designed for use in food, pharmaceutical, chemical, and industrial packaging sectors. The machine accommodates a range of materials, such as laminated paper, PET, BOPP, CPP, and PE, and supports pouch thicknesses from 0.06 to 0.18mm. Equipped with chromed steel rollers and a servo-driven rotary knife, the advanced control system ensures consistent sealing quality and minimizes material wastage for dazzling, first-string results every cycle.

Order Completion & Delivery Highlights

Benefit from seamless experience right from order completion to delivery with flexible payment terms and reliable transport services. The valuation process provides clear and competitive rates, ensuring transparency at every stage. With a robust supply ability, prompt order processing is guaranteed. Swift delivery times are ensured through our nationwide network of dealers, distributors, and logistics partners, so you can count on the timely arrival of your machine, fully ready for integration into your operations.

FAQ's of High speed seven servo three side sealing standy zipper pouching machine:

Q: How does the seven servo system enhance machine performance?

A: The seven servo motor system delivers precise control over various machine functions, improving accuracy, synchronization, and speed, which results in consistent pouch quality and enhanced productivity.

Q: What types of pouches and materials can be used with this machine?

A: This machine is suitable for producing stand-up, zipper, and three side sealed pouches using materials like laminated paper, PET, BOPP, CPP, and PE, with a thickness range of 0.06 to 0.18mm.

Q: When can I expect order completion and delivery after purchase?

A: Once your order is placed and payment terms are finalized, order completion and dispatch occur swiftly, with delivery typically scheduled according to your location and transport service availability.

Q: Where can the machine be used, and who supplies it?

A: The machine is ideal for use in food, pharmaceutical, chemical, and industrial packaging operations. It is available through authorized dealers, distributors, exporters, manufacturers, and suppliers across India.

Q: What are the main advantages for users?

A: Users benefit from high-speed operation, precise and consistent seals, energy-efficient performance, low noise, and computerized, touch-screen controls for streamlined production and reduced downtime.
